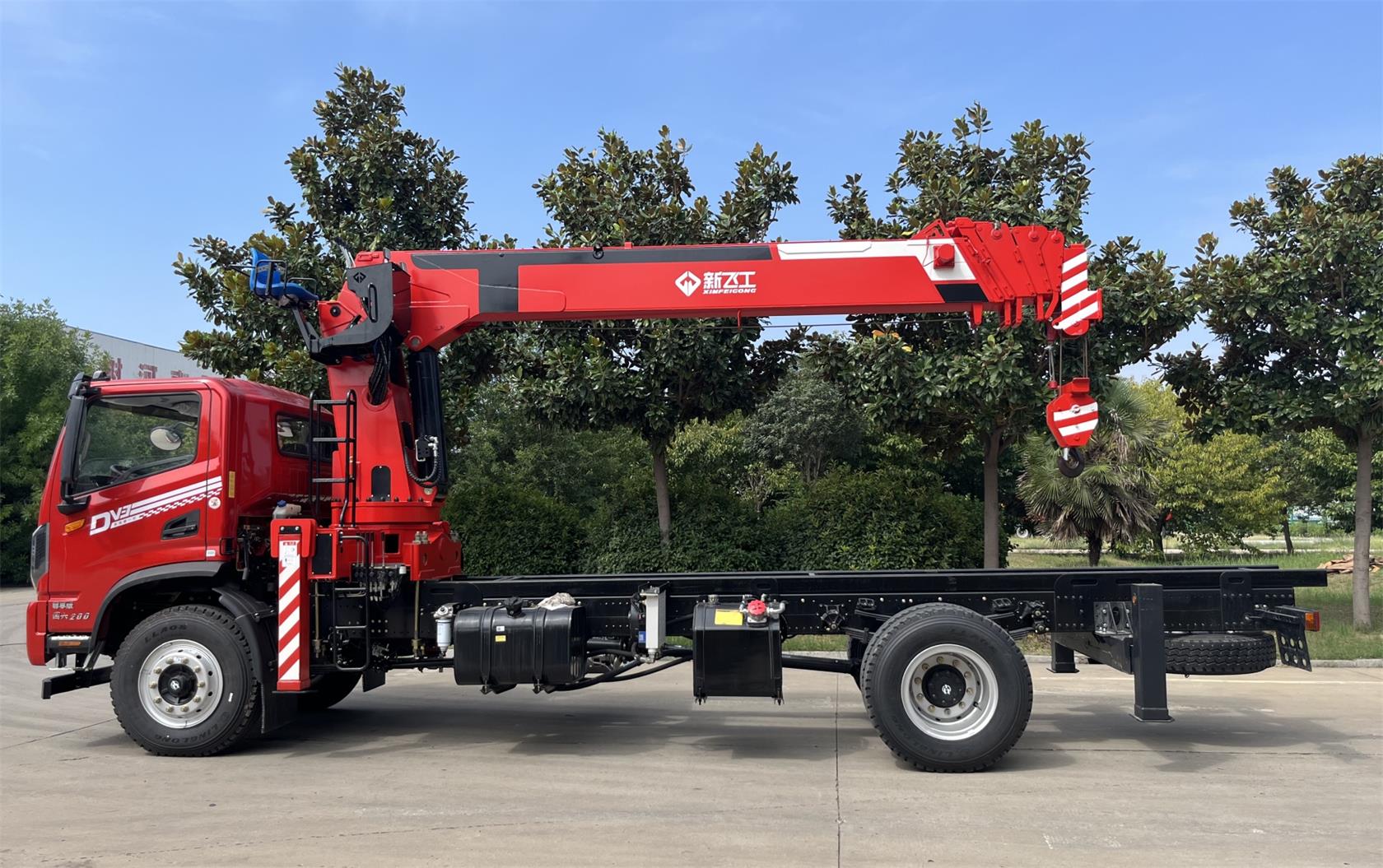

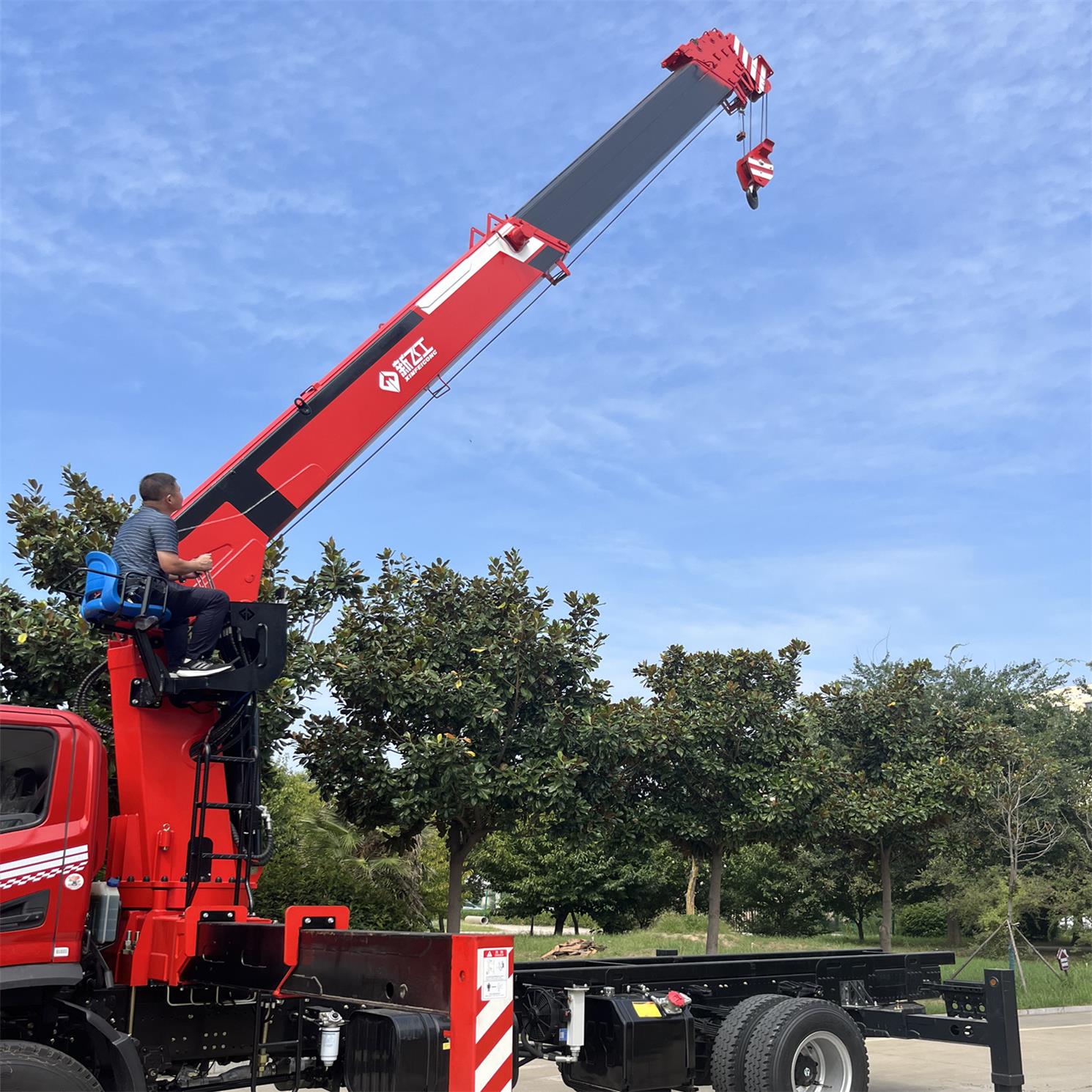

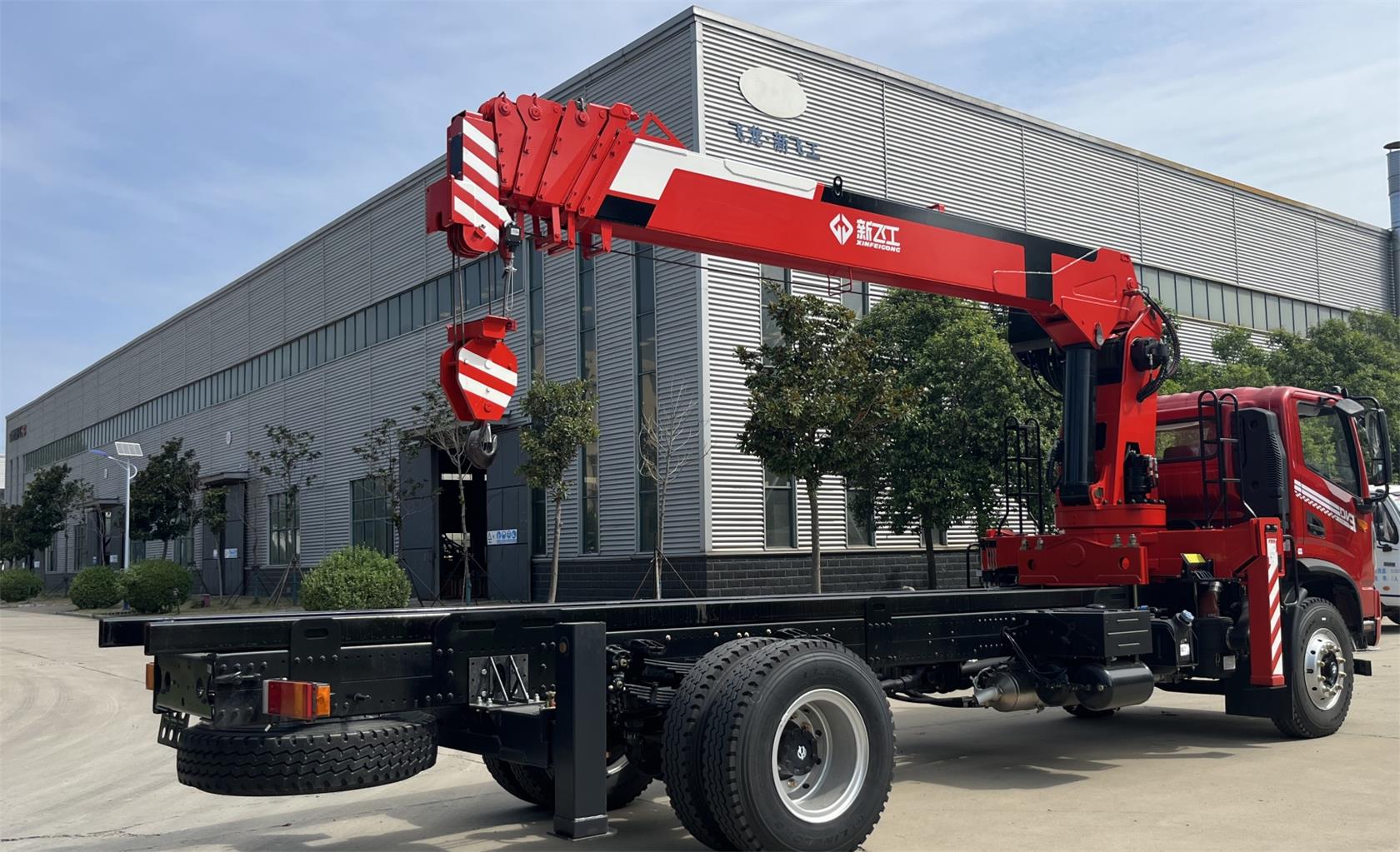

Straight boom crane SQS300-6

Straight boom crane SQS300-6

Call for price

Crane Features

Crane with 6-section boom, hexagonal cross-section option, boom length 21.5m, lifting height 23.5m.

It features two cylinders and three rope connections. Additionally, it comes with a free switch model that allows for easy extension and retraction of the boom.

can option crane with a cabin, to provide a safe working environment for operators, prevent sunburn, and block severe cold.

The double outrigger beam span of 7110mm enhances working ability.

integrated hydraulic motor and winch, strong lifting capacity,



分类：

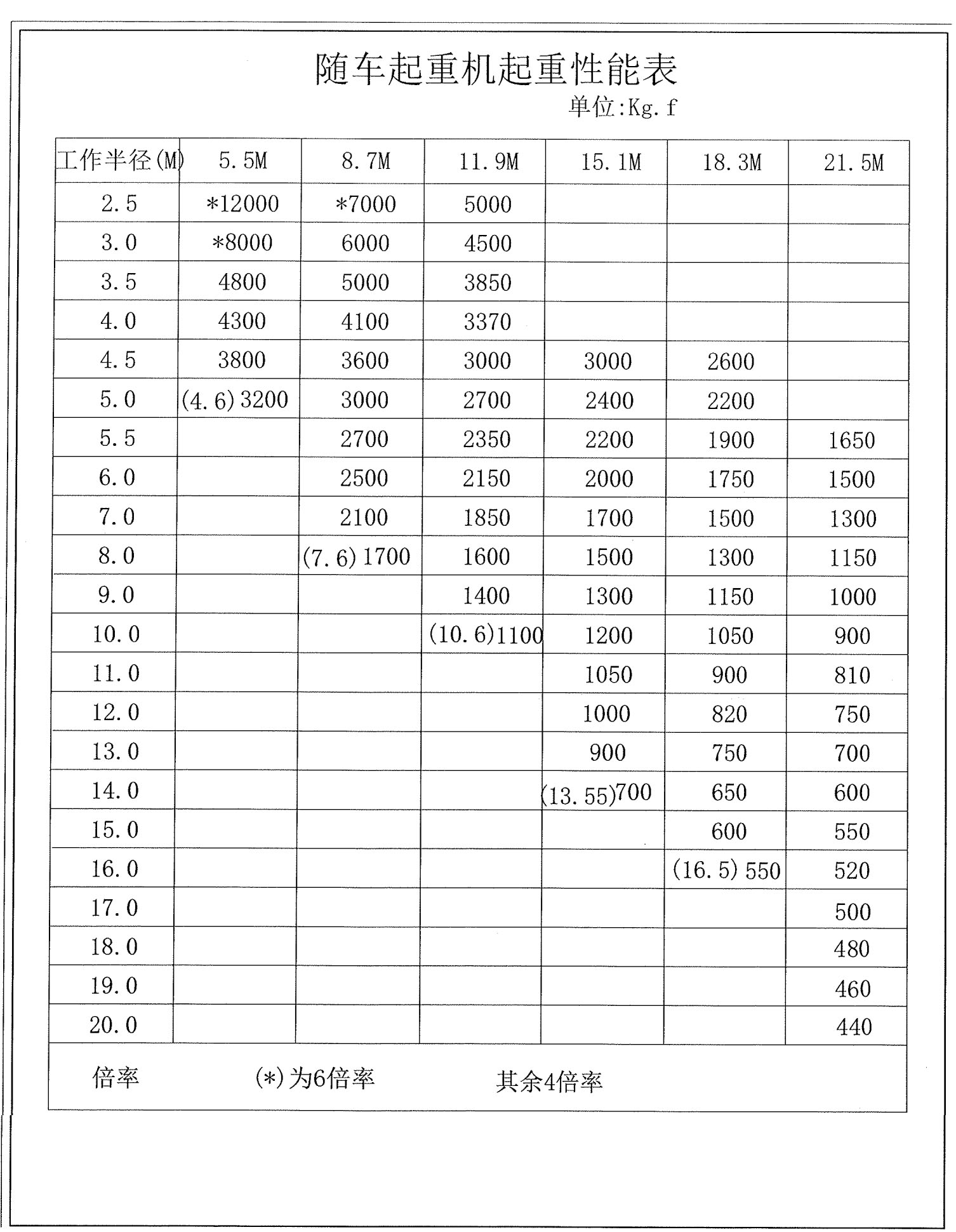

Parameters

Crane Description

Truck-mounted crane, Model: SQS300-6, lifting capacity 12000kg, 6-section boom max lifting height 23.5m, inside boom 2 cylinders, can be realized as a free switch model for boom extension. recommend chassis drive type 4×2, 6×4, 8X4 GVW 18000Kg to 31000Kg
