Knuckle boom crane SQZ84

Knuckle boom crane SQZ84

Call for price

Crane model: SQZ84

Product Features

1. Fvie-section hydraulic telescopic boom, covering wider working conditions.

2. The boom material is made of BS700 high-strength steel, which reduces the weight of the boom and increases its strength.

3. Optimize the structural layout of the crane, reduce the weight of the fuselage, and improve the service life of components.

4. Variable cross-section turntable design, compact structure, beautiful appearance, using high-strength steel, the whole machine is lighter in weight.
5. Independent operating unit, oil circuit can be reserved for the optional interface, which can meet the installation requirements of additional accessories.
6. The gear and rack rotation structure makes the rotation more stable and powerful.

7. A telescopic boom can be selected with four booms and five booms. Optional remote control.

8. Adopt famous hydraulic parts, safety operation, working stable and highly efficient.

分类：

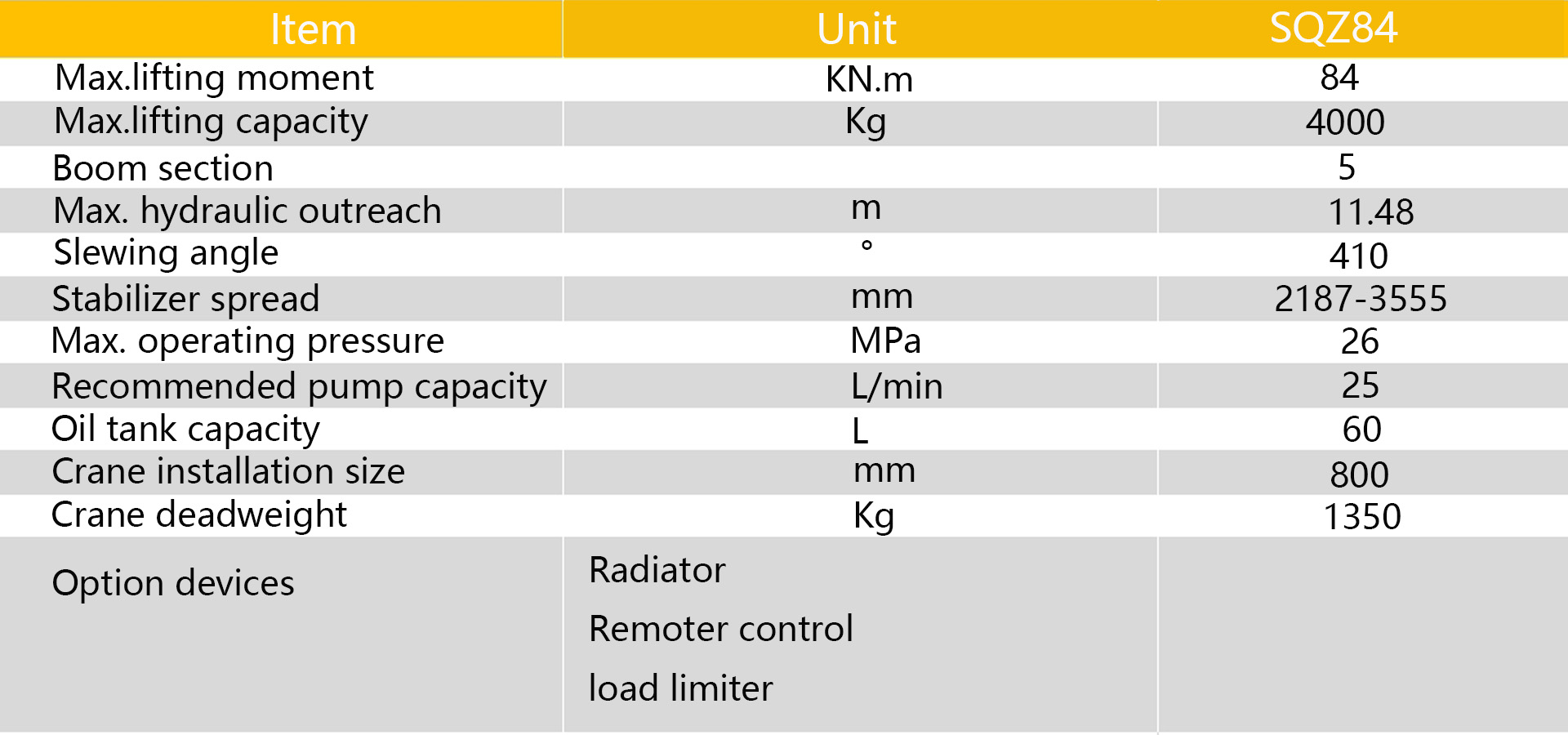

Parameters

Production Description

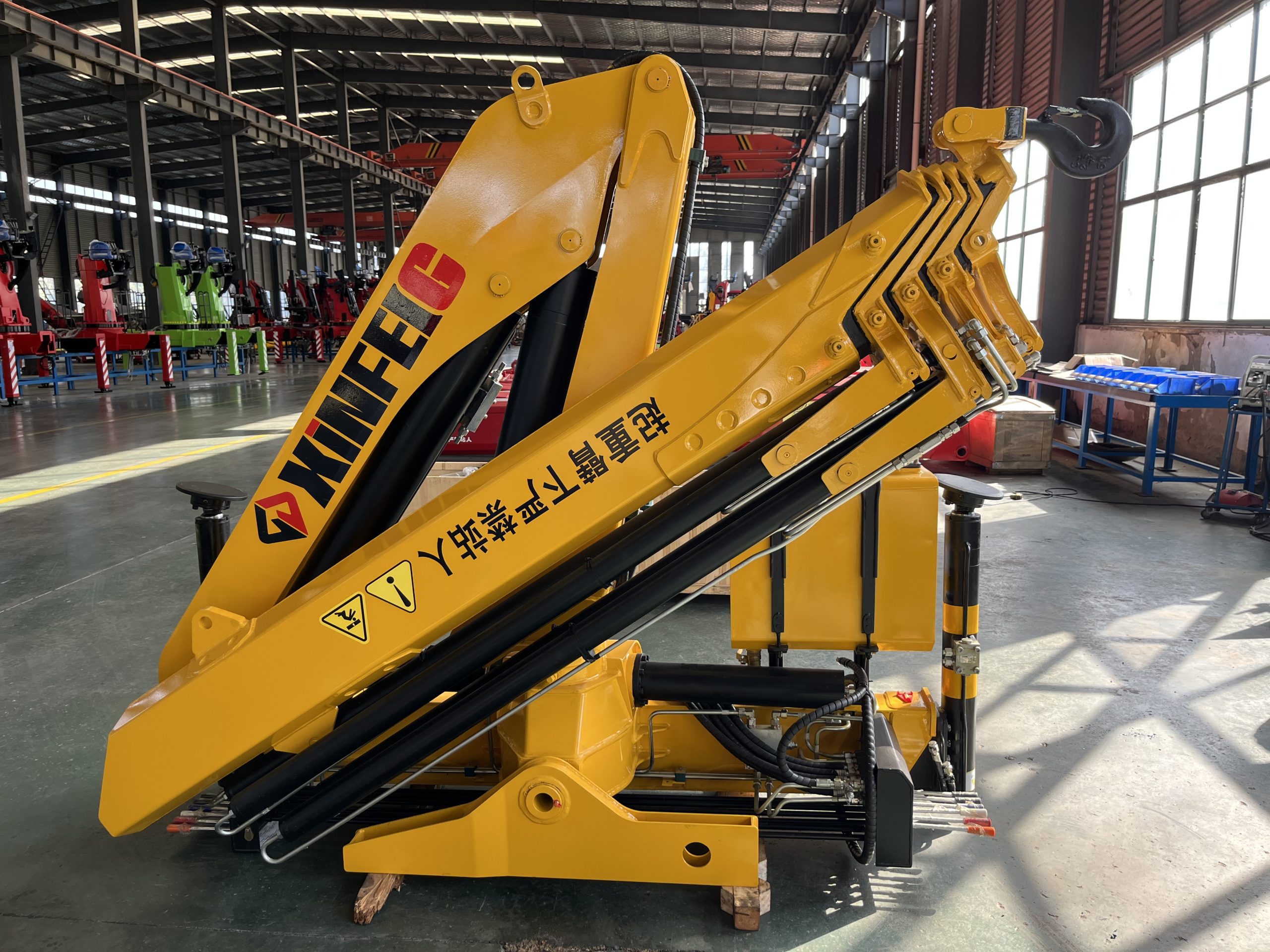

Crane model: SQZ84 lifting capacity 4000Kg, max boom outreach 11.48meters. folding arm crane, knuckle arm crane, with 4-section boom, compact design of crane structure, with excellent workmanship, make our product have good performance, safety easy to operation.

Crane Dimension SQZ84.2

Crane model: SQZ84.2, Crane lifting capacity 4000Kg, boom outrigger 7.5 meters, 2-section boom. 410 degree rotation.
