Knuckle boom crane SQZ350

Knuckle boom crane SQZ350

Call for price

Introduction to main features
1. New hexagonal arm cross-section, with greater lifting capacity at the same amplitude and strong bending and torsion resistance.
2.  Full rotation, stable and powerful rotation, easy to repair and maintain, with a rotation angle of 360°.
3. Double-chamber large-span outrigger structure, better operation stability.
4. The finite element method is used to optimize the product structure design, and the whole machine has a lighter deadweight.
5. Equal torque design, stronger lifting performance.
6. Wide temperature hydraulic oil, can be used in winter and summer.

分类：

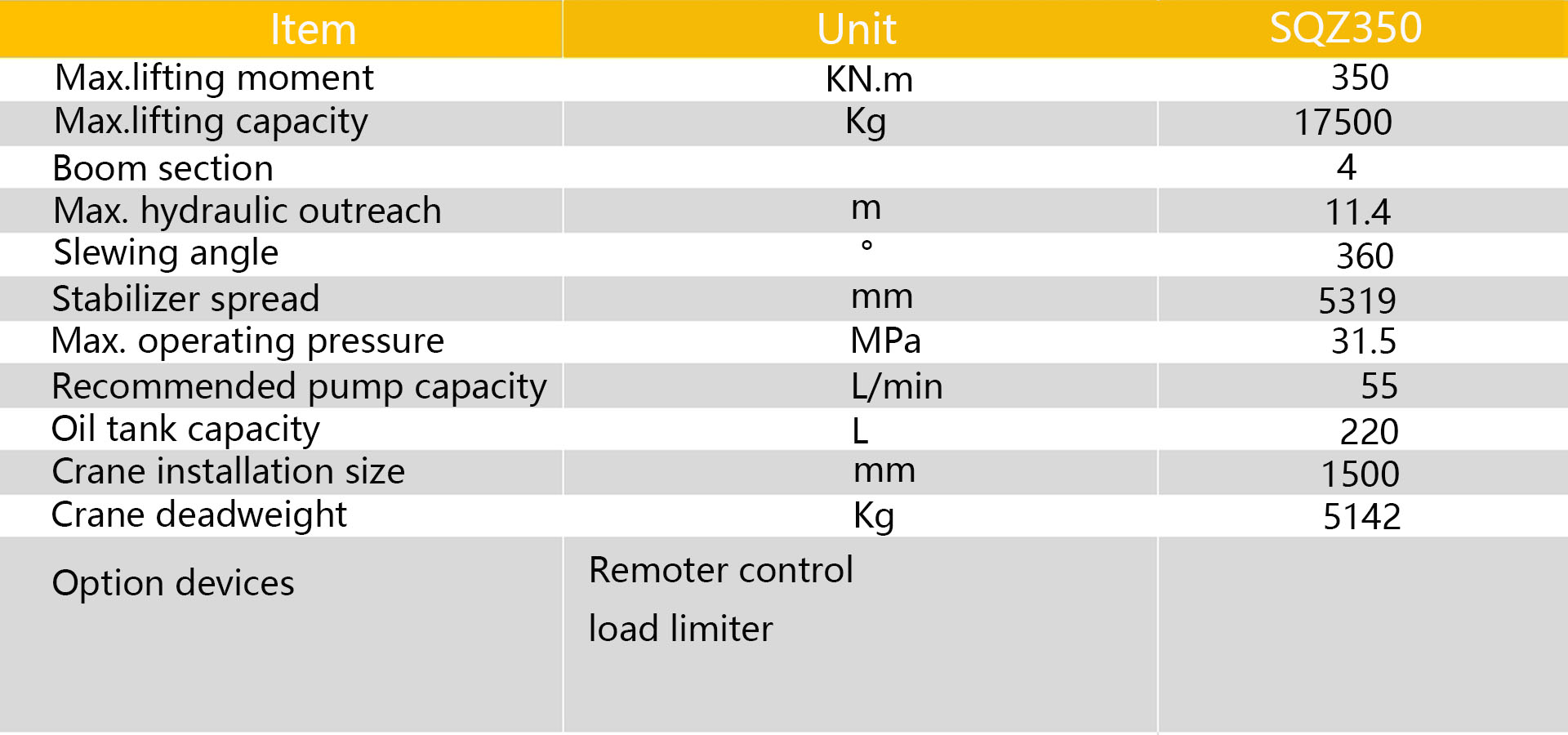

Parameters

Product Description

Knuckle boom crane lifting capacity of 17500Kg, 4-section hydraulic boom, working radius of 11.4meters, boom fully extended load of 2450Kg, 360-degree rotation, good micro movement, and easy to control, an option remote control.
