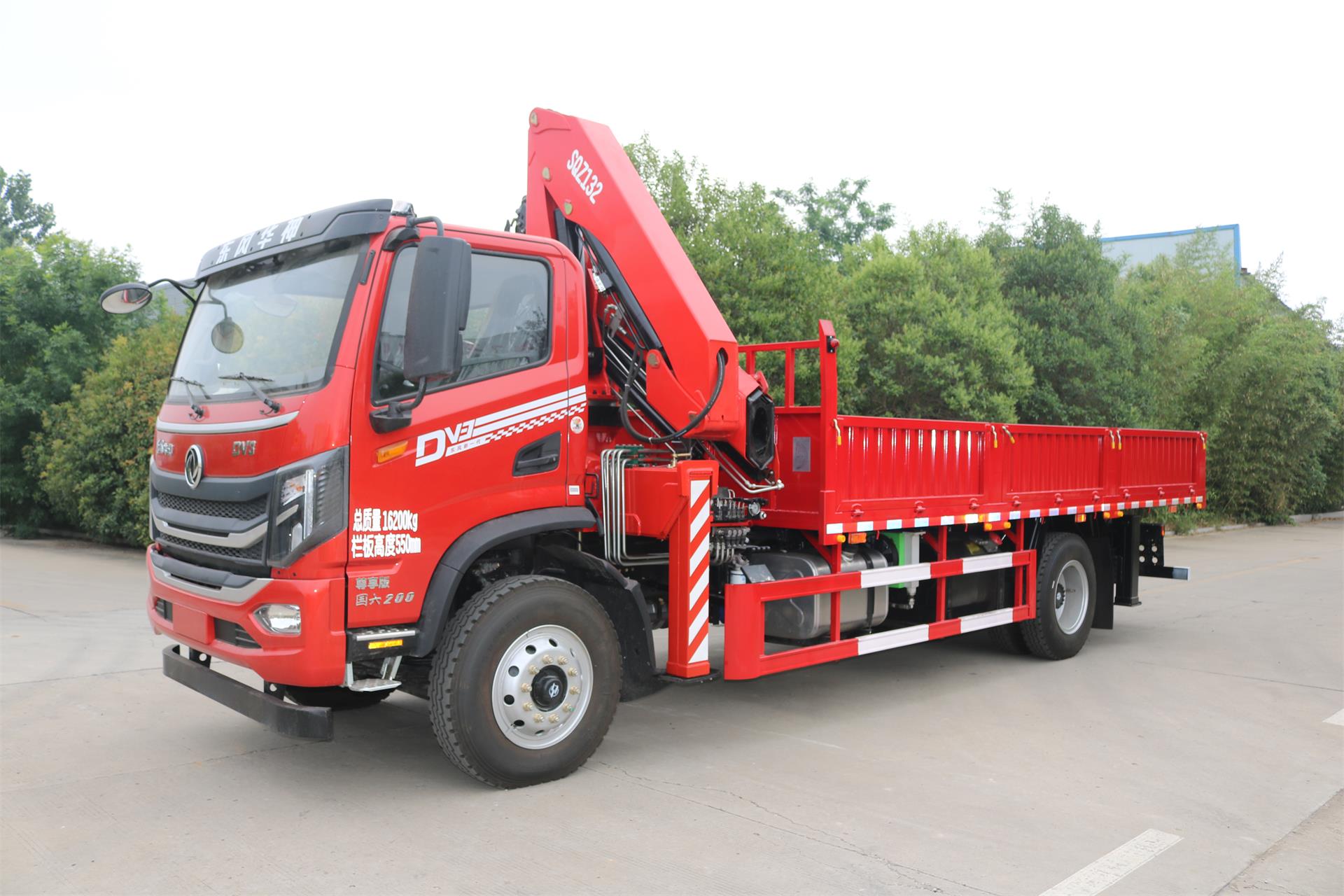

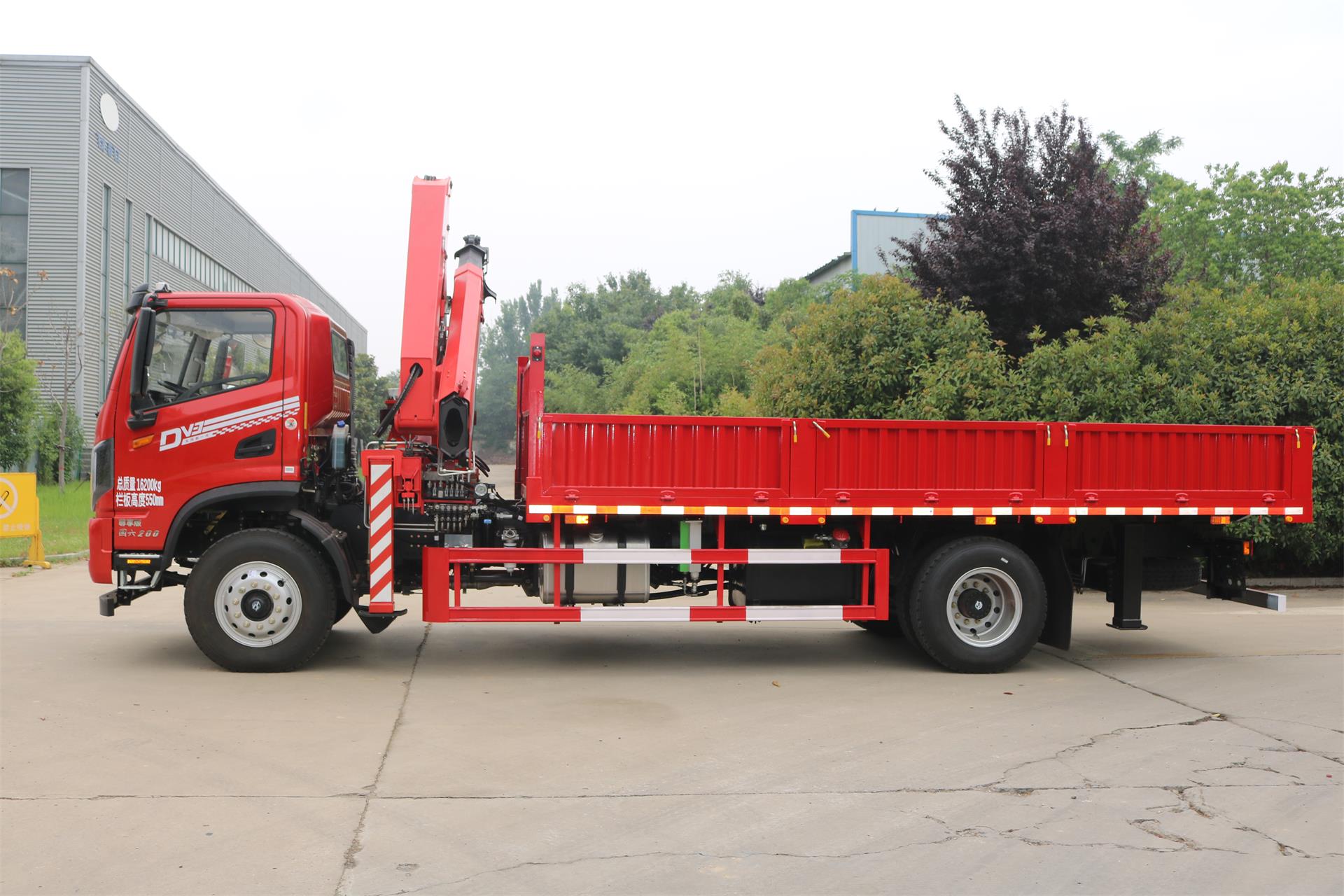

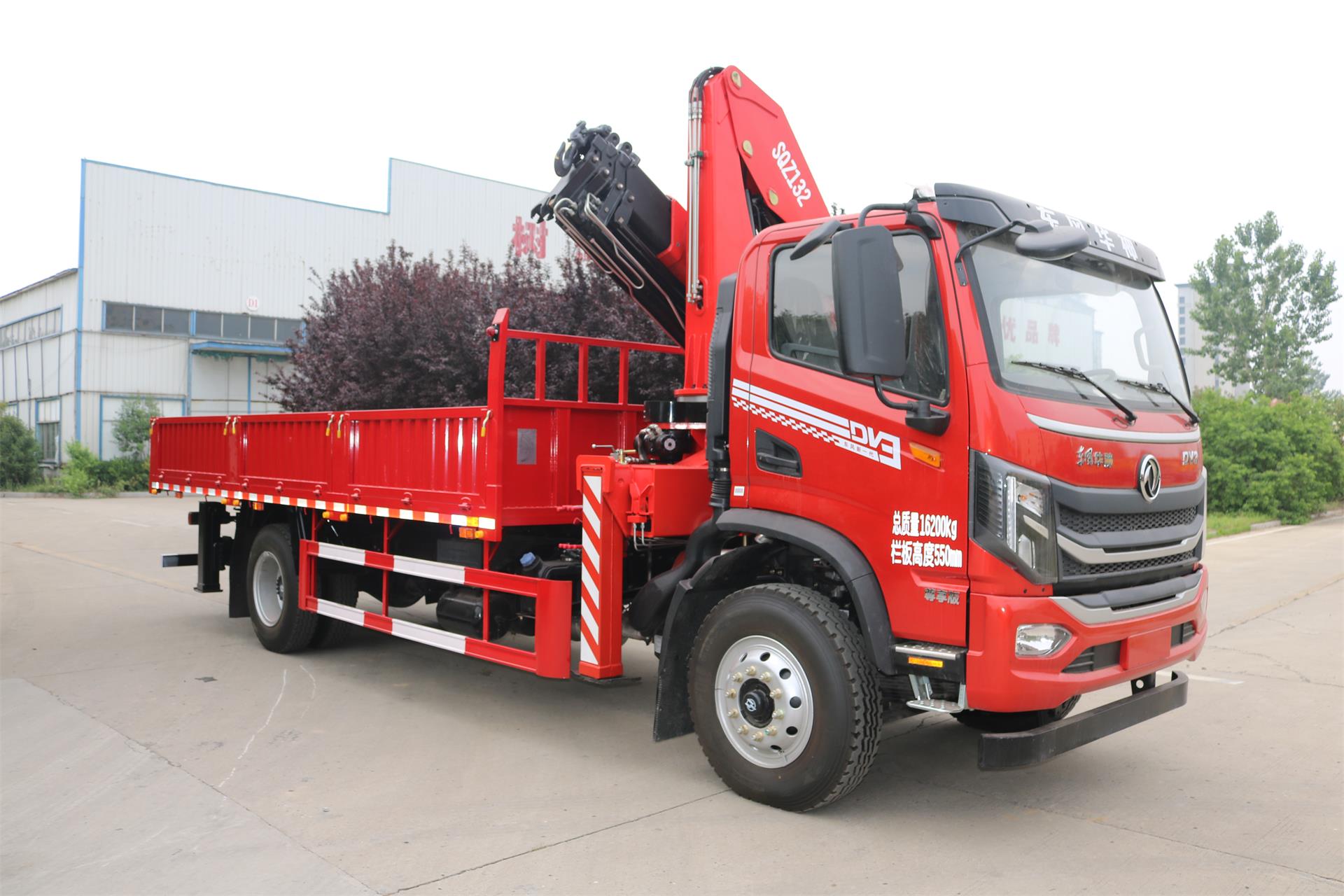

Knuckle boom crane SQZ132

Knuckle boom crane SQZ132

Call for price

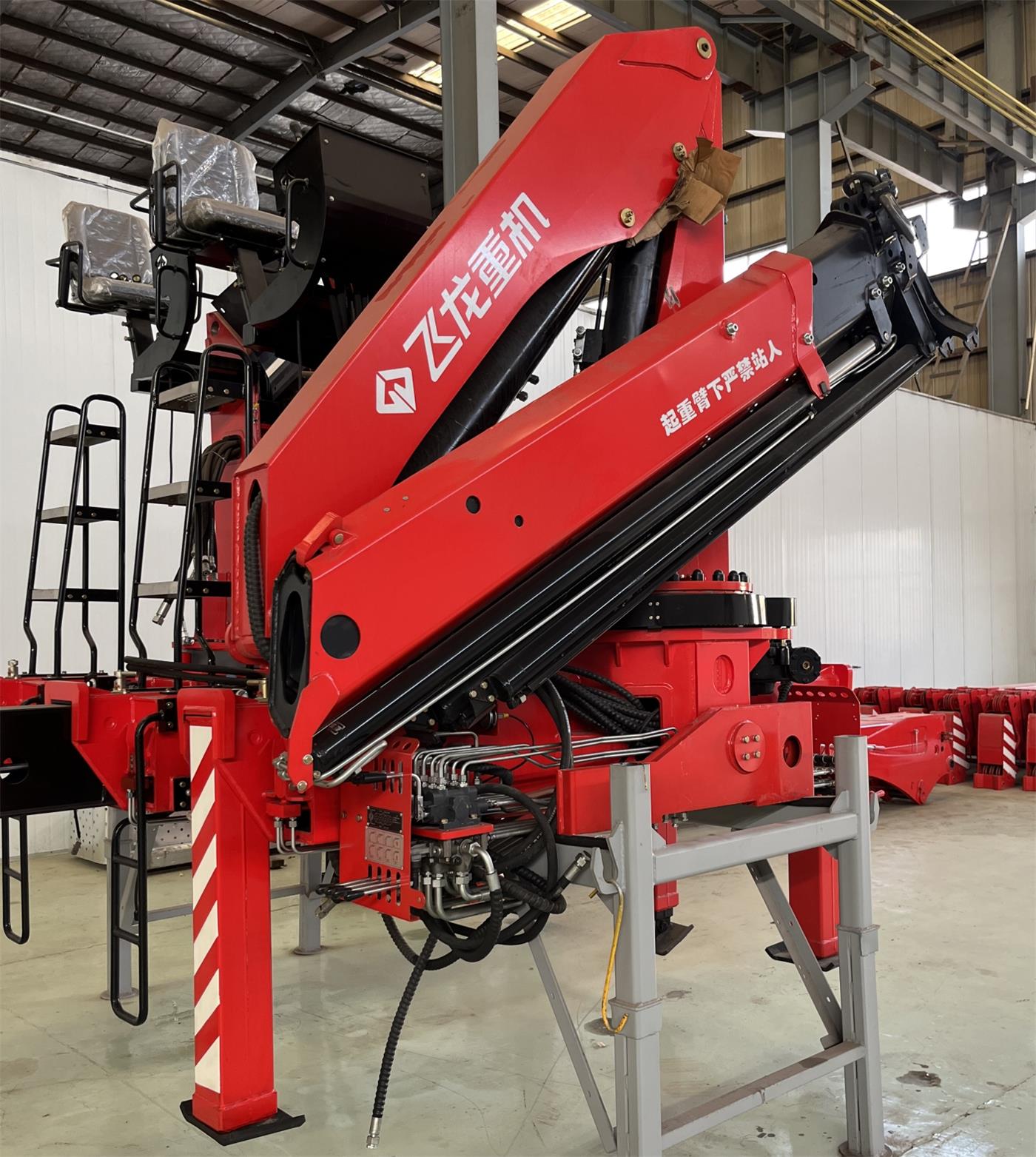

Crane Features

– Five-section hydraulic telescopic boom, covering wider working conditions;

– The boom material is made of BS700 high-strength steel, which reduces the weight of the boom and increases its strength;

– Optimize the structural layout of the crane, reduce the weight of the fuselage, and improve the service life of components;

– 360-degree full rotation, more efficient operation;

– Independent operating unit, oil circuit can be reserved for an optional interface, which can meet the installation requirements of additional accessories

– Telescopic arms can be selected with four arms and five arms;

– Adopt famous hydraulic parts, safety operation, working stable and highly efficient;

分类：

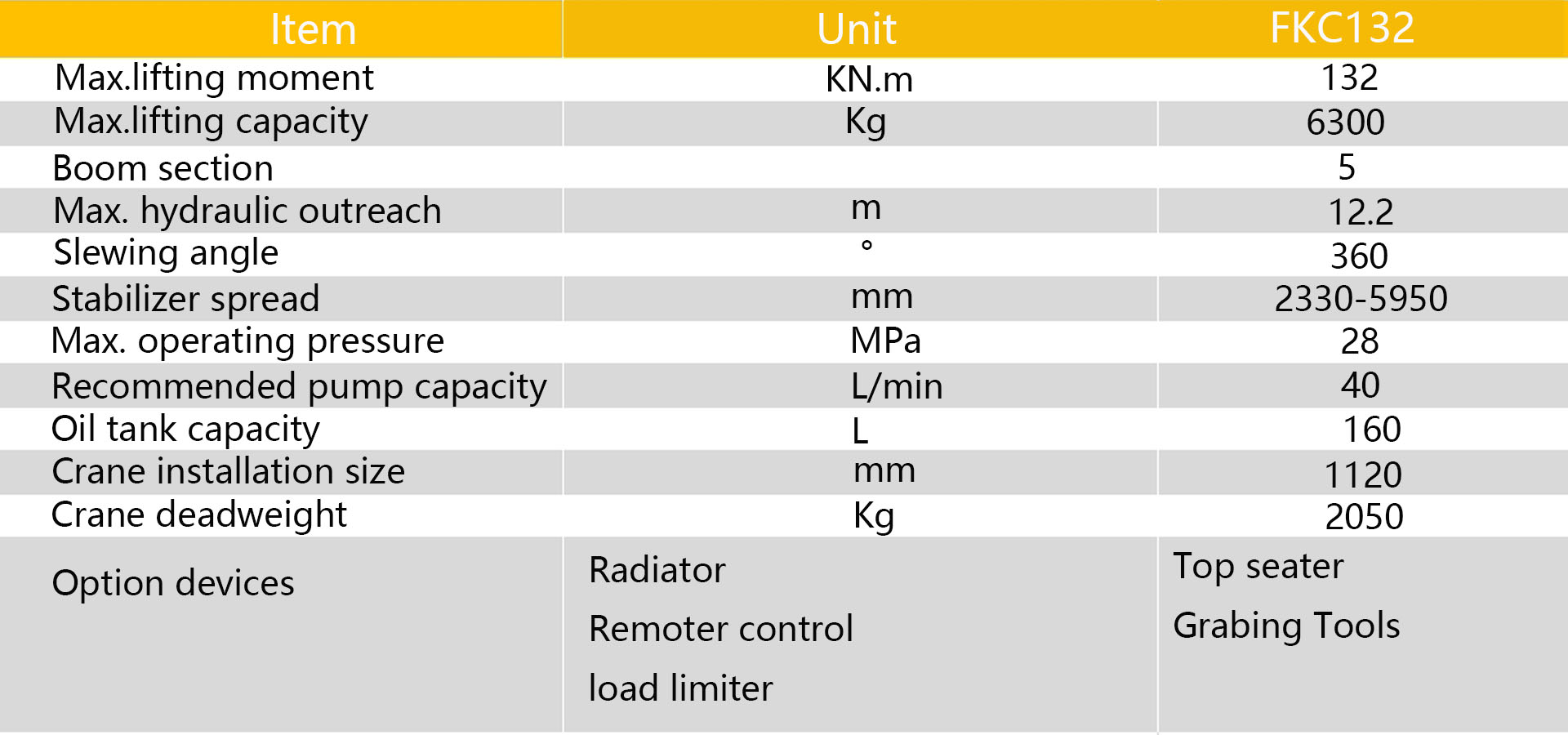

Parameters

Crane Description

Crane Model: FKC132

Knuckle boom crane 6.3ton lifting capacity, 5-section boom, Max outreach 12.2 meters. Famous hydraulic brands make every movement smooth precise, and easy to control.

Excellent workmanship ensures the crane structure is stable and runs a long service life.
