Knuckle boom crane SQZ105.2

Knuckle boom crane SQZ105.2

Call for price

Crane Features

– 2-section hydraulic telescopic boom, working radius 8.3m;

– The boom material is made of BS700 high-strength steel, which reduces the weight of the boom and increases its strength;

– Optimize the structural layout of the crane, reduce the weight of the fuselage, and improve the service life of components;

– Independent operating unit, oil circuit can be reserved for an  optional interface, which can meet the installation requirements of additional accessories

– Telescopic arms can be selected with 2 arms and 4 arms;

– Adopt famous hydraulic parts, safety operation, working stable and highly efficient;

  • Adopt rack cylinder rotation angel 420 degrees;
分类：

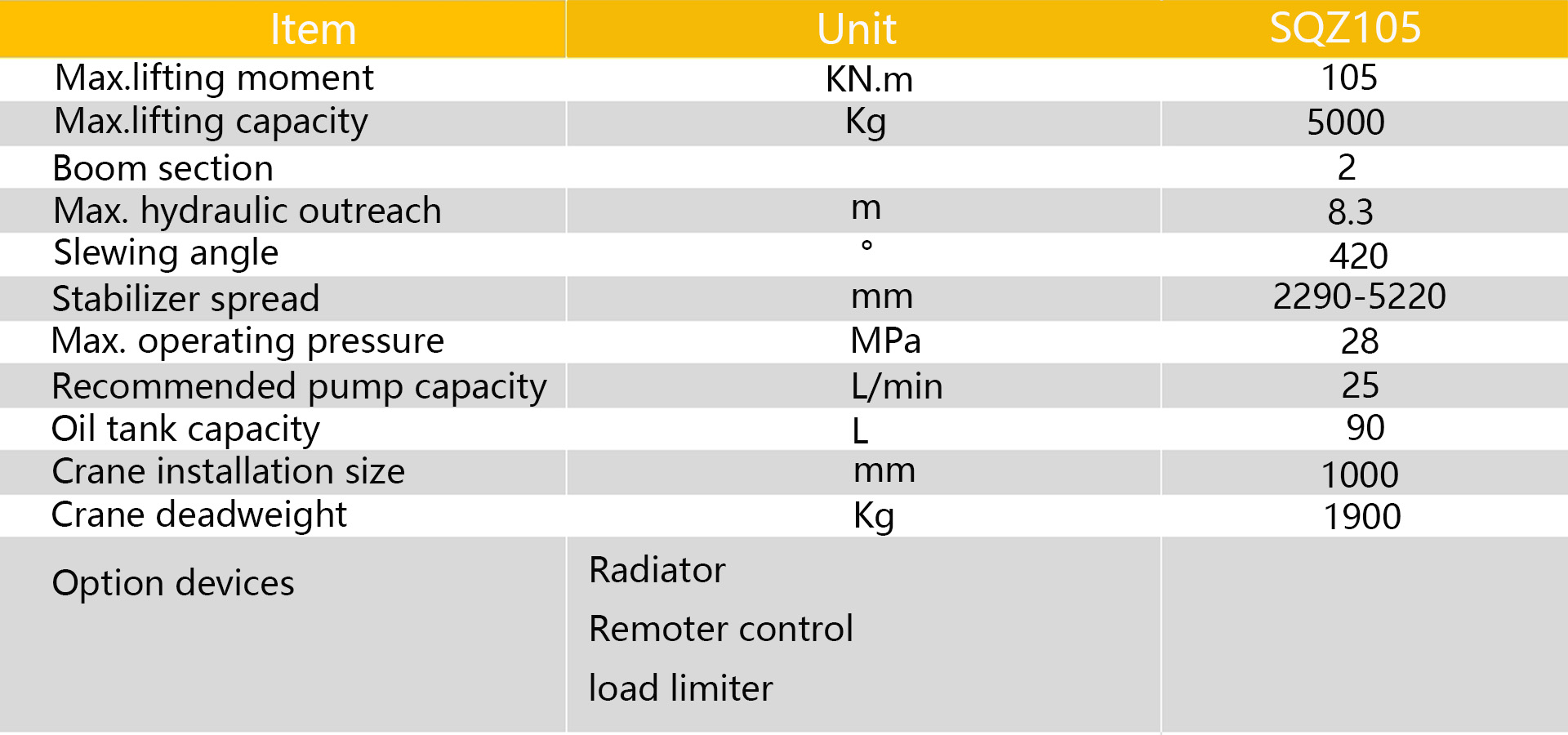

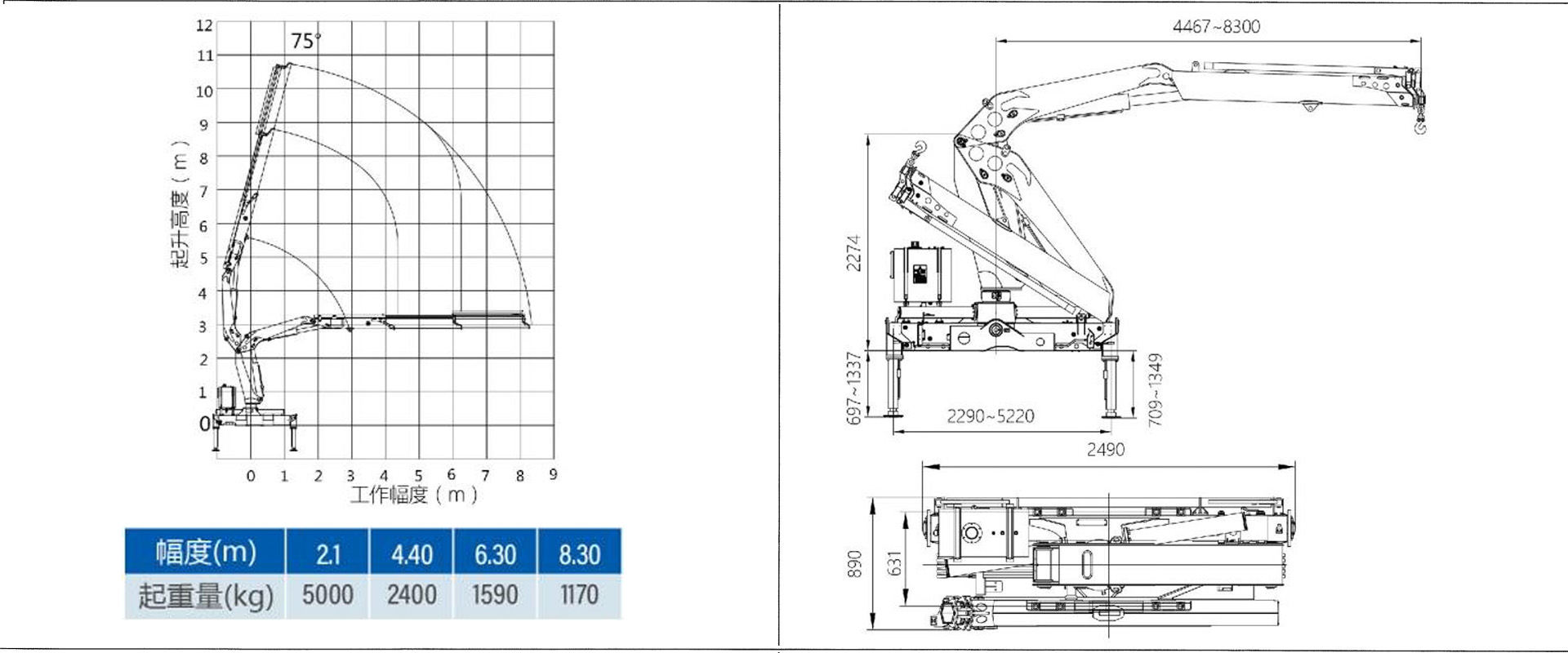

Parameters

Crane Description

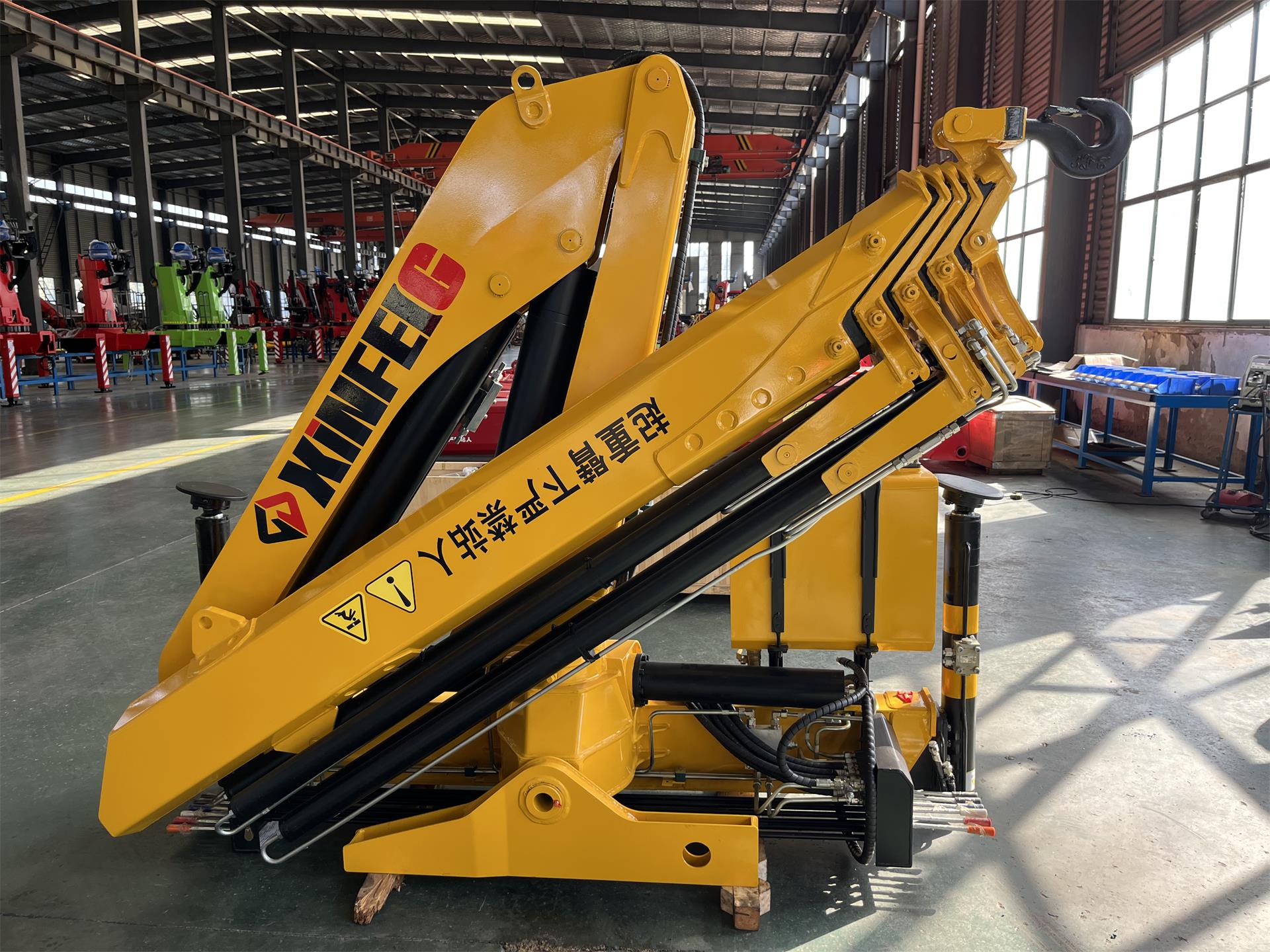

Knuckle boom crane model: SQZ105.2

Knuckle boom crane lifting capacity of 5000Kg, folding arm crane, with 2-section boom, max lifting height 8.3m, compact design of crane structure, with excellent workmanship, make our product have good performance, safety easy to control;
